Rhinoceros is one of the India’s leading Rock Breaker supplier in the organised sector and since inception it has played a pivotal role in building the country’s infrastructure.
The Group began since 2007 & the journey has been very prosperous with astonishing examples of customer satisfaction. We are thankful for the support got from customers which has helped us to achieve and reach where we are.
Our journey of growth, with sheer hard-work, dedication and perseverance, has made us fully conscious of the virtues of honesty & integrity, and our customers identify us as a company which delivers what it promises. We have supplied rock breakers to almost all the major Corporates to name the few - Reliance, Coastal, L&T, SAIL, Leighton, Bumi, Heildberg, Hindalco, ABIR etc
Our Quality policy lays maximum stress on achieving excellence in every sphere of our operations. We at Rhinoceros have singled out 3 most important aspects related to the quality of our finished products.
Having grown with sheer hard-work, dedication and perseverance, we as an organization are fully conscious of the virtues of honesty & integrity, and would like to be always known as a company which delivers what it promises.
Growing in the same vein, we visualize a time in future where our customers would lay their complete trust on us, assured about the fact that we @ Rhinoceros will always deliver them with unwavering accuracy unparalleled customer satisfaction with our sales and support.
Our journey of growth, with sheer hard-work, dedication and perseverance, has made us fully conscious of the virtues of honesty & integrity, and our customers identify us as a company which delivers what it promises.

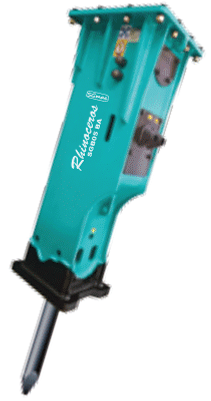

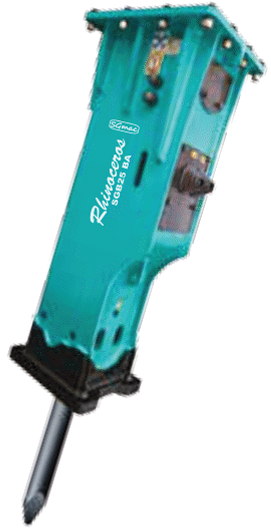

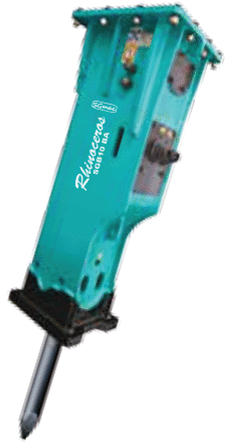

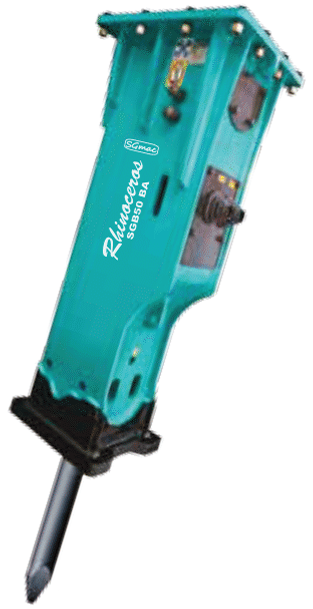

Rhinoceros (SGmac) Model | Unit | SGB01 | SGB02 | SGB03 | SGB05 | SGB06 | SGB10 | SGB13 | SGB25 | SGB25 PLUS | SGB30 | SGB30 PLUS | SGB40 | SGB40 PLUS | SGB50 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Selection of Machine | ton | 0.5-1.5 | 1-3 | 2-4 | 1-3 | 6-9 | 7-14 | 12-16 | 18-21 | 18-26 | 27-35 | 28-35 | 35-45 | 30-45 | 40-55 |
Weight | kg | 85 | 135 | 155 | 346 | 380 | 510 | 861 | 1500 | 1825 | 2100 | 2690 | 3200 | 2960 | 3990 |
Required Oil Flow Range | lpm | 15-25 | 20-35 | 25-40 | 40-45 | 50-90 | 60-100 | 80-120 | 100-150 | 120-180 | 160-190 | 180-240 | 190-250 | 200-260 | 210-290 |
Operation Pressure | bar | 90-120 | 90-120 | 90-120 | 110-140 | 110-140 | 130-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
Impact Rate | bpm | 750-1200 | 650-1000 | 550-950 | 500-900 | 400-800 | 400-800 | 450-700 | 350-650 | 350-500 | 360-700 | 300-450 | 250-500 | 250-400 | 200-350 |
Impact Energy | joule | 157 | 245 | 343 | 735 | 883 | 1373 | 2599 | 3555 | 4200 | 6129 | 6500 | 10199 | 9000 | 12000 |
Rod / Chisel | mm | 40 | 46 | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 150 | 155 | 160 | 165 | 175 |
Contents/Model | Unit | 180F | 250F | 250F | 320F | 420F |
---|---|---|---|---|---|---|
Total Weight | Kg | 950 | 1500 | 1750 | 2450 | 4200 |
Total Length | mm | 1920 | 2020 | 2200 | 2350 | 2900 |
Max Opening Width | mm | 0~700 | 0~880 | 0~950 | 0~1100 | 0~1280 |
Crashing power A | kn | 1880 | 2175 | 2582 | 2636 | 3586 |
Crashing Power B | kn | 774 | 980 | 1136 | 1205 | 1764 |
Crashing Power C | kn | 597 | 735 | 842 | 901 | 1470 |
Application Equipment | Ton | 12~15 | 18~22 | 20~22 | 24~32 | 35~48 |
Contents/Model | Unit | JST 40 | JST 50 | JST 81 | JST 130 |
---|---|---|---|---|---|
Carrier Weight | ton | 3~9 | 10~18 | 18~23 | 23~32 |
Working Power | ton | 2~3 | 5~6 | 8~10 | 10~12 |
Vibration | cpm | 2200 | 2200 | 2200 | 2200 |
Weight | kg | 250 | 570 | 700 | 1250 |
Base Plate | mm | 800 X 450 | 990 X 760 | 1300 X 850 | 1480 X 950 |
Working Pressure | Kg/cm2 | 100~130 | 110~160 | 130~180 | 150~210 |
Working Flow | l/min | 60 | 120 | 151 | 180 |
Contents/Model | Unit | JSD 400 | JSD 600 | JSD 800 | JSD 1200 |
---|---|---|---|---|---|
Capacity | Liter | 300 | 500 | 800 | 900 |
Weight | Kg | 900 | 1370 | 2100 | 2550 |
A | mm | 1718 | 2000 | 2038 | 2070 |
B | mm | 1058 | 1210 | 1502 | 1700 |
H | mm | 1204 | 1444 | 1869 | 2050 |
HL | mm | 1034 | 1270 | 1723 | 2000 |
Excavator | ton | 6.5~18 | 18~25 | 28~35 | 35~42 |
